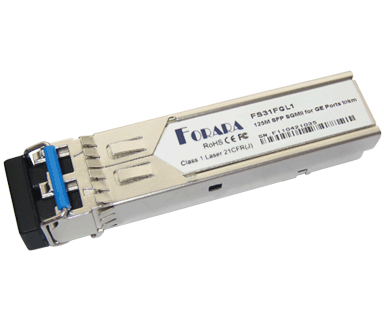

  • 100BASE-LX SGMII SFP 1310nm 10km SMF (FS31FGL1)

  • Features
    • Hot-pluggable SFP footprint
    • 100BASE-LX SFP for Gigabit Ethernet ports
    • Uncooled 1310nm FP transmitter and PIN photo-detector
    • Transmission distance of 10km over SMF
    • Build-in PHY supporting SGMII interface
    • Low power dissipation
    • Single +3.3V power supply
    • Metal enclosure for lower EMI
    • Duplex LC receptacle
    • Support digital diagnostic monitoring functions
    • Compliant with MSA SFP Specification
    • Compliant with SFF-8472
    • Compliant with RoHS-6 (lead-free)
    • Operating Case Temperature:
      Commercial temperature range(COM): -5 to 70°C
      Extended temperature range (EXT): -10 to 85°C
      Industrial temperature range(IND): -40 to 85°C

    Applications
    • 100BASE-LX
    • Gigabit Ethernet To Fast Ethernet
    • Other Optical Links

  • Product Details
    Part Number
    Download Datasheet
    Data Rate
    (Gbps)
    Reach
    (km)
    Wavelength
    (nm)
    Source Case Temp.
    (°C)
    DDM Others
    FS31FGL1 125 10 1310 FP + PIN -5 ~ 70 Yes SMF, RoHS-6
    FS31FGL1E 125 10 1310 FP + PIN -10 ~ 85 Yes SMF, RoHS-6
    FS31FGL1I 125 10 1310 FP + PIN -40 ~ 85 Yes SMF, RoHS-6
    Notes:
    For further information, please contact us by email via sales@forara.com.
