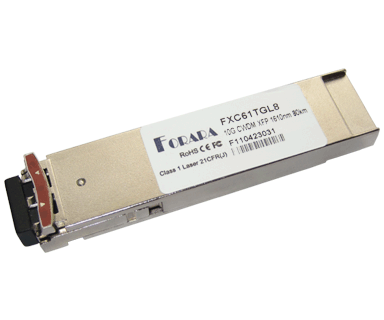

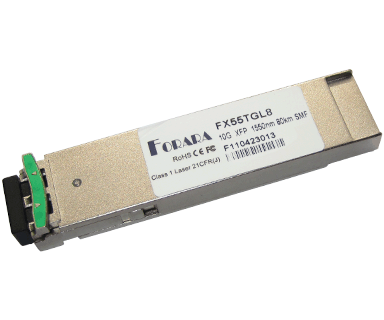

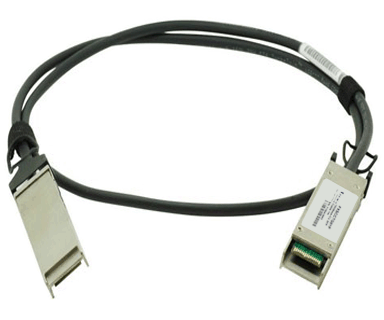

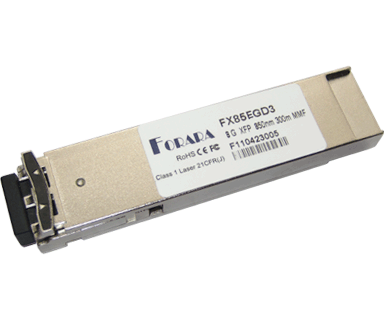

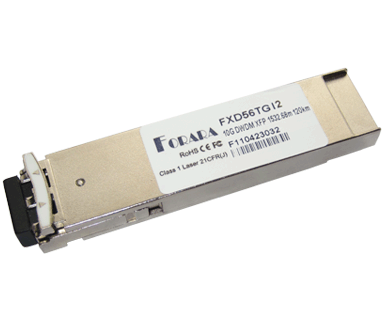

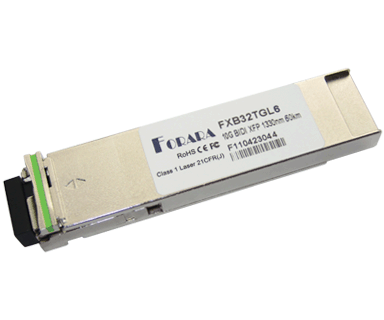

The Forara XFP products are hot pluggable and low power consumption, initially designed for 10G Fiber Channel, 10G Ethernet, SONET OC-192, SDH STM-64 and OTN G.709 applications, now have expanded to 8G Fiber Channel applications, supporting bit rate from 9.95G through 11.3G and 8G. The electrical interface to the host board is a standardized serial 10 Gbps interface called XFI. Product type includes XFP, CWDM XFP, DWDM XFP, Tunable DWDM XFP, BIDI XFP, and XFP Passive / Active Copper Cable.
Regulatory and Standards Compliance

Standards:
• IEEE 802.3: 10-Gigabit Ethernet
• Telcordia GR-1377, ITU-T G.691 and G.693
• GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable
• GR-326-CORE: Generic Requirements for Single-mode Optical Connectors and Jumper Assemblies
• GR-1435-CORE: Generic Requirements for Multi-Fiber Optical Connectors

Safety
• Laser Class 1 21CFR-1040
• Laser Class 1 IEC60825-1
• Cable jacket of XFP copper modules is UL
• All length XFP copper cables are ELV and RoHS Compliant
