Features

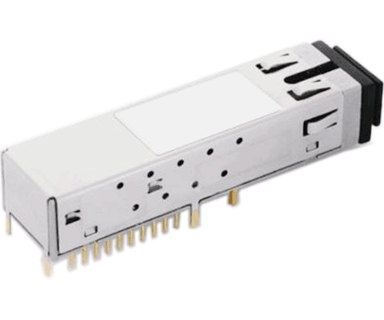

• 2X10 SFF package with SC receptacle
• Bi-directional 1.25Gbps upstream, 1.25Gbps downstream
• 1310nm FP laser burst-mode transmitter
• 1490nm PIN continuous-mode receiver
• Complies with IEEE802. 3ah 1000BASE-PX20 application
• Single +3.3V power supply
• Digital diagnostic monitor interface compatible with SFF-8472
• LVPECL compatible data input/output interface
• LVTTL burst enable control and low level enable
• LVTTL receiver signal-detected indication
• Low EMI and excellent ESD protection
• Compliant with RoHS-6 (lead-free)
• Operating Case Temperature:
Commercial temperature range(COM): -5 to 70°C
Extended temperature range (EXT): -10 to 85°C
Industrial temperature range(IND): -40 to 85°C
Applications
• Gigabit Ethernet Passive Optical Network (GEPON) ONU
• Other Optical Links
