8G XFP LR 10km

Products

Quick Download

Home > Products > XFP > 8G XFP > FX31EGL1

Features
• Hot-pluggable XFP footprint
• Uncooled 1310nm DFB transmitter and PIN photo-detector
• Up to 8.5Gbps bi-directional data links
• Transmission distance of 10km over 9/125um SMF
• Power consumption < 2.0W
• AC/AC Coupling according to MSA
• Power supply: +1.8V,+3.3V
• Supports XFI and Lineside loopback
• No reference clock required
• Duplex LC receptacle
• 2-Wire Interface for Integrated Digital Diagnostic Monitoring
• Compliant with XFP MSA
• Compliant with FC-PI-4 800-SM-LL-L
• Compliant with RoHS-6 (lead-free)
• Operating Case Temperature:
Commercial temperature range(COM): 0 to 70°C
Industrial temperature range(IND): -40 to 85°C

Applications
• Tri-Rate 2.125 / 4.25 / 8.5 Gbps Fiber Channel
• Other Optical Links

Product Details

Notes:
For further information, please contact us by email via sales@forara.com.

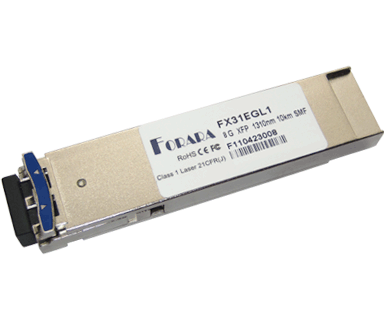

8G XFP LR 1310nm 10km SMF (FX31EGL1)
