Home > Products > XFP > 8G XFP > FX55EGL4

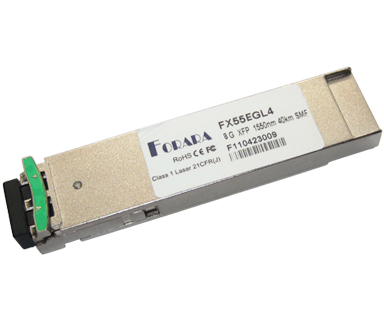

  • 8G XFP ER 1550nm 40km SMF (FX55EGL4)

    • 8G XFP ER 1550nm 40km SMF
    View enlarged image
    SUBMIT PRODUCT INQUIRY
  • Features
    • Hot-pluggable XFP footprint
    • Temperature-stabilized 1550nm EML transmitter and PIN photo-detector
    • Up to 8.5Gbps bi-directional data links
    • Transmission distance of 40km over 9/125um SMF
    • Power consumption < 3.5W
    • AC/AC Coupling according to MSA
    • Power supply: +1.8V,+3.3V
    • Supports XFI and Lineside loopback
    • No reference clock required
    • Duplex LC receptacle
    • 2-Wire Interface for Integrated Digital Diagnostic Monitoring
    • Compliant with XFP MSA
    • Compliant with FC-PI-4 800-SM-LL-L
    • Compliant with RoHS-6 (lead-free)
    • Operating Case Temperature:
      Commercial temperature range(COM): 0 to 70°C
      Industrial temperature range(IND): -40 to 85°C

    Applications
    • Tri-Rate 2.125 / 4.25 / 8.5 Gbps Fiber Channel
    • Other Optical Links

    • Product Details
    Part Number
    Download Datasheet    		 Data Rate
    (Gbps)    		 Reach
    (km)    		 Wavelength
    (nm)    		 Source Case Temp.
    (°C)    		 DDM Others
    FX55EGL4 8.5 40 1550 EML + PIN 0 ~ 70 Yes SMF, RoHS-6
    FX55EGL4E 8.5 40 1550 EML + PIN -10 ~ 85 Yes SMF, RoHS-6
    FX55EGL4I 8.5 40 1550 EML + PIN -40 ~ 85 Yes SMF, RoHS-6
    Notes:
    For further information, please contact us by email via sales@forara.com.
