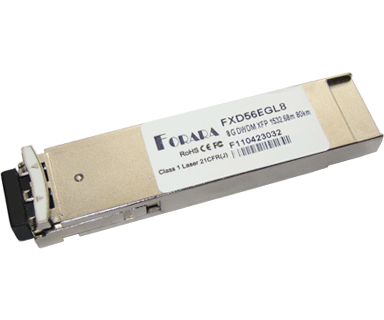

  • 8G DWDM XFP 80km SMF (FXDXXEGL8)

  • Features
    • Hot-pluggable XFP footprint
    • Cooled DWDM EML transmitter and APD photo-detector
    • 100GHz ITU Grid, C-Band
    • Up to 8.5Gbps bi-directional data links
    • Transmission distance of 80km over 9/125um SMF
    • Power consumption < 3.5W
    • AC/AC Coupling according to MSA
    • Power supply: +1.8V,+3.3V
    • Supports XFI and Lineside loopback
    • No reference clock required
    • Duplex LC receptacle
    • Built-in Digital Diagnostic Monitoring functions
    • Compliant with XFP MSA
    • Compliant with FC-PI-4 800-SM-LL-L
    • Compliant with RoHS-6 (lead-free)
    • Operating Case Temperature:
      Commercial temperature range(COM): 0 to 70°C
      Industrial temperature range(IND): -40 to 85°C

    Applications
    • Tri-Rate 2.125 / 4.25 / 8.5 Gbps Fiber Channel
    • Other Optical Links

  • Product Details
    Part Number
    Download Datasheet
    Data Rate
    (Gbps)
    Reach
    (km)
    Wavelength
    (nm)
    Source Case Temp.
    (°C)
    DDM Others
    FXDXXEGL8 8.5 80 C-Band EML + APD 0 ~ 70 Yes SMF, RoHS-6
    FXDXXEGL8E 8.5 80 C-Band EML + APD -10 ~ 85 Yes SMF, RoHS-6
    FXDXXEGL8I 8.5 80 C-Band EML + APD -40 ~ 85 Yes SMF, RoHS-6
    Notes:
    1. XX is 100GHz ITU Channel ID, XX=17, 18, 19...61, which 17=1563.86nm, 18=1563.05nm, 19=1562.23nm ... 61=1528.77nm
    2. Please contact with Forara for specific wavelength availability.
