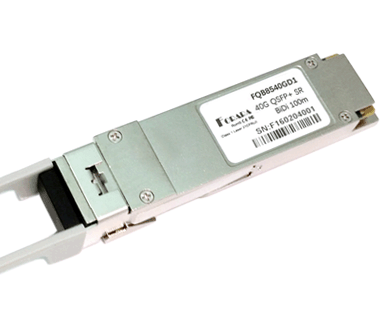

  • 40G QSFP+ SR BiDi 100m MMF (FQB8540GD1)

  • Features
    • Hot pluggable QSFP+ form factor
    • Two 20 Gbps transmit and receive channels in the 850/900nmr
    • Transmission distance of 100m and 150m respectively on OM3 and OM4
    • Reliable VCSEL array technology
    • Power Consumption < 3.5W
    • Single 3.3V power supply
    • XLPPI electrical interface
    • Duplex LC receptacles
    • Built-in digital diagnostic functions
    • Compliant to the 40GbE XLPPI electrical specification per IEEE 802.3ba-2010
    • Compliant to QSFP+ SFF-8436 Specification
    • Compliant with RoHS-6 (lead-free)
    • Operating Case Temperature:
      Commercial temperature range(COM): 0 to 70°C

    • 40GBASE-SR4 40G Ethernet
    • Datacom/Telecom Switch & Router Connections
    • Other Optical Links

  • Product Details
    Part Number
    Download Datasheet
    Data Rate
    Source Case Temp.
    DDM Others
    FQB8540GD1 40 100 850/900 VSCEL + PIN 0 ~ 70 Yes MMF, RoHS-6
