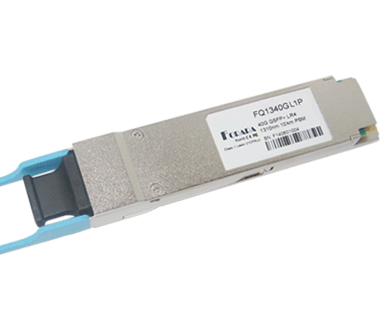

  • 40G QSFP+ PSM LR4 1310nm 10km SMF (FQ1340GL1P)

  • Features
    • Hot pluggable QSFP+ form factor
    • Four parallel lanes design
    • Supports 44.8 Gbps aggregate bit rates (up to 11.2 Gbps per channel)
    • Transmission distance of 10km on SMF
    • Uncooled 4x10Gbps 1310nm DFB transmitter and PIN photo-detector
    • Power Consumption < 3.5W
    • Single 3.3V power supply
    • XLPPI electrical interface
    • Single MPO-12 receptacle
    • Built-in digital diagnostic functions
    • Compliant with 40G Ethernet IEEE802.3ba
    • Compliant with RoHS-6 (lead-free)
    • Operating Case Temperature Range:
      Commercial temperature range(COM): 0 to 70°C

    • 40GBASE-LR4 40G Ethernet
    • Infiniband QDR, DDR and SDR
    • Other Optical Links

  • Product Details
    Part Number
    Download Datasheet
    Data Rate
    Source Case Temp.
    DDM Others
    FQ1340GL1P 40 10 1310 DFB + PIN 0 ~ 70 Yes SMF, RoHS-6
    For further information, please contact us by email via
