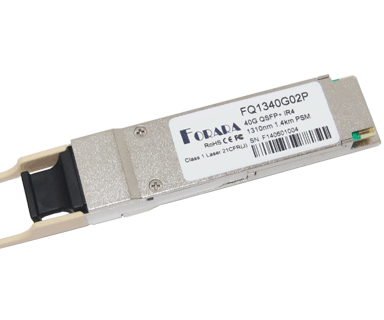

  • 40G QSFP+ PSM IR4 1310nm 2km SMF (FQ1340G02P)

  • Features
    • Hot pluggable QSFP+ form factor
    • Four Parallel lanes design
    • Supports 44.8Gbps aggregate bit rates up to 11.2Gbps per channel)
    • Transmission distance of 2km on SMF
    • Uncooled 4x10Gbps 1310nm FP transmitter and PIN photo-detector
    • Power Consumption < 3.5W
    • Single 3.3V power supply
    • XLPPI electrical interface
    • Single MPO-12 receptacle
    • Built-in digital diagnostic functions
    • Compliant with 40G Ethernet IEEE802.3ba
    • Compliant with RoHS-6 (lead-free)
    • Operating Case Temperature Range:
      Commercial temperature range(COM): 0 to 70°C

    Applications
    • 40GBASE-IR4 40G Ethernet
    • Infiniband QDR, DDR and SDR
    • Other Optical Links

  • Product Details
    Part Number
    Download Datasheet
    Data Rate
    (Gbps)
    Reach
    (km)
    Wavelength
    (nm)
    Source Case Temp.
    (°C)
    DDM Others
    FQ1340G02P 40 2 1310 FP + PIN 0 ~ 70 Yes SMF, RoHS-6
    Notes:
    For further information, please contact us by email via sales@forara.com.
