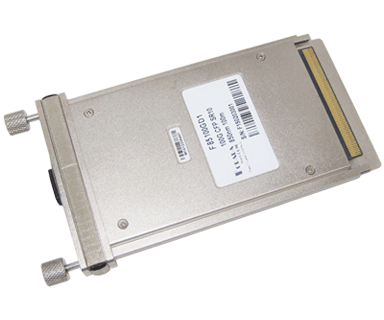

  • 40G CFP ER4 40km SMF (FC1340GL4)

  • Features
    • Hot pluggable CFP form factor
    • Four CWDM lanes (1271nm, 1291nm, 1311nm, 1331nm) MUX / DEMUX design
    • Supports 41.2Gbps aggregate bit rates (up to 10.3Gbps per wavelength)
    • Transmission distance of 10km on SMF
    • Uncooled 4x 10Gbps CWDM DFB transmitter and APD receivers
    • Built in quad TX CDR and RX CDR
    • Power Consumption < 8.0W typical
    • Single 3.3V power supply
    • XLAUI high speed electrical interface
    • Duplex LC receptacles (straight or angled for option)
    • MDIO interface with integrated Digital Diagnostic Monitoring
    • Compliant with 40G Ethernet IEEE802.3ba
    • Compliant with OTU3
    • Compliant with RoHS-6 (lead-free)
    • Operating Case Temperature:
      Commercial temperature range(COM): 0 to 70°C

    Applications
    • 40GBASE-ER4 40G Ethernet
    • Other Optical Links

  • Product Details
    Part Number
    Download Datasheet
    Data Rate
    (Gbps)
    Reach
    (km)
    Wavelength
    (nm)
    Source Case Temp.
    (°C)
    DDM Others
    FC1340GL4 40 40 1270 ~ 1330 DFB + APD 0 ~ 70 Yes SMF, RoHS-6
    Notes:
    For further information, please contact us by email via sales@forara.com.
