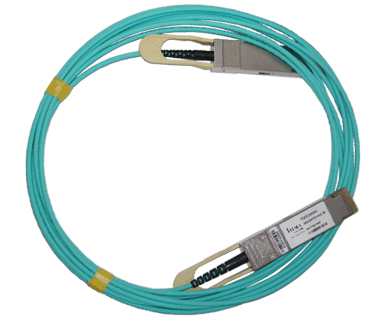

  • 400G QSFP-DD to QSFP-DD Active Optical Cable 1m (FQOC400G01)

  • Features
    • Hot pluggable QSFP-DD form factor
    • Supports 400Gbps aggregate bit rates (up to 53.125 Gbps per channel)
    • Transmission distance up to 70m and 100m respectively on OM3 and OM4
    • Full-duplex 8 channels 850nm parallel Active Optical Cable
    • Internal CDR circuits on both receiver and transmitter channels
    • Low power dissipation: <4.0W per cable end
    • Ultra-low crosstalk for improved performance
    • Low insertion loss
    • Single 3.3V power supply
    • Compliant with IEEE 802.3bs
    • RoHS-6 compliant (lead-free)
    • Operating Case Temperature:
      Standard: 0°C to 70°C

    Applications
    • 400 Gigabit Ethernet
    • Data Center Networks
    • Storage Area Networks
    • High performance computing
    • Other Optical Links

  • Product Details
    Part Number
    Download Datasheet
    Data Rate
    (Gbps)
    Reach
    (m)
    Wavelength
    (nm)
    Source Case Temp.
    (°C)
    DOM Others
    FQOC400G01 400 1 850 VCSEL + PIN 0 ~ 70 Yes MMF, RoHS-6
    Notes:
    1. Other customized lengths maybe available upon request.
    2. For further information, please contact us by email via sales@forara.com.
