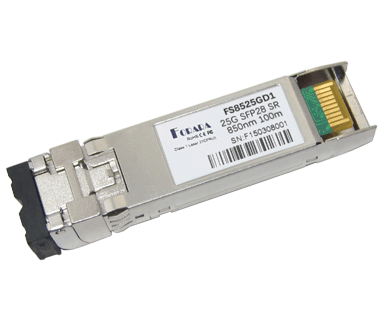

  • 25G SFP28 SR 100m MMF (FS8525GD1)

  • Features
    • Hot pluggable SFP28 form factor
    • 850nm Oxide VCSEL laser transmitter and PIN photo-detector
    • Data rate up to 25.78Gbps bit rate
    • Transmission distance of 100m and 150m respectively on OM3 and OM4
    • Power consumption < 1.2W
    • Internal CDR on both Transmitter and Receiver channel
    • Single 3.3V power supply
    • Metal enclosure for lower EMI
    • Duplex LC receptacle
    • Built-in Digital Diagnostic Monitoring functions
    • Compliant with IEEE802.3by 25GBASE-SR
    • Compliant with SFF-8431, SFF-8432, SFF-8402 and SFF-8472
    • Compliant with RoHS-6 (lead-free)
    • Operating Case Temperature:
      Commercial temperature range(COM): 0 to 70°C
      Industrial temperature range(IND): -40 to 85°C

    • 25GBASE-SR Ethernet
    • High-speed Storage Area Networks
    • Other Optical Links

  • Product Details
    Part Number
    Download Datasheet
    Data Rate
    Source Case Temp.
    DDM Others
    FS8525GD1 25 100 850 VSCEL + PIN 0 ~ 70 Yes MMF, RoHS-6
    FS8525GD1I 25 100 850 VSCEL + PIN -40 ~ 85 Yes MMF, RoHS-6
