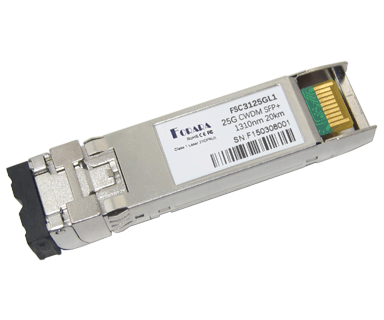

  • 25G SFP28 CWDM 10km SMF (FSCXX25GL1)

  • Features
    • Hot pluggable SFP28 form factor
    • CWDM DFB transmitter and PIN receiver
    • 8 wavelengths from 1470nm to 1610nm with step 20nm
    • Data rate up to 25.78Gbps bit rate
    • Transmission distance of 10km on 9/125um SMF
    • Power consumption < 1.5W
    • Single 3.3V power supply
    • Metal enclosure for lower EMI
    • Duplex LC receptacle
    • Built-in Digital Diagnostic Monitoring functions
    • Compliant with IEEE802.3by 25GBASE-LR
    • Compliant with SFF-8431, SFF-8432, SFF-8402 and SFF-8472
    • Compliant with RoHS-6 (lead-free)
    • Operating Case Temperature:
      Commercial temperature range(COM): 0 to 70°C
      Industrial temperature range(IND): -40 to 85°C

    Applications
    • 25GBASE-LR Ethernet
    • High-speed Storage Area Networks
    • Other Optical Links

  • Product Details
    Part Number
    Download Datasheet
    Data Rate
    (Gbps)
    Reach
    (km)
    Wavelength
    (nm)
    Source Case Temp.
    (°C)
    DDM Others
    FSCXX25GL1 25 10 1470 ~ 1610 DFB + PIN 0 ~ 70 Yes SMF, RoHS-6
    FSCXX25GL1I 25 10 1470 ~ 1610 DFB + PIN -40 ~ 85 Yes SMF, RoHS-6
    Notes:
    For further information, please contact us by email via sales@forara.com.
