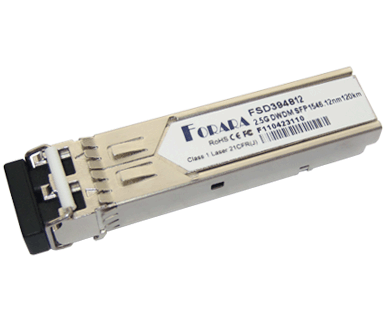

2.5G DWDM SFP 120km SMF (FSDXX4812)

Product Details

Part Number	Data Rate (Gbps)	Reach (km)	Wavelength (nm)	Source	Case Temp. (°C)	DDM	Others
FSDXX4812	2.5	120	C-Band	DFB + APD	-5 ~ 70	Yes	SMF, RoHS-6
FSDXX4812E	2.5	120	C-Band	DFB + APD	-10 ~ 85	Yes	SMF, RoHS-6
FSDXX4812I	2.5	120	C-Band	DFB + APD	-40 ~ 85	Yes	SMF, RoHS-6

Notes:
1. XX is 100GHz ITU Channel ID, detail as following table:
2. Please contact with Forara for specific wavelength availability.

Channel ID XX	Frequency (THz)	Wavelength (nm)		Channel ID XX	Frequency (THz)	Wavelength (nm)
16	191.60	1564.68		39	193.90	1546.12
17	191.70	1563.86		40	194.00	1545.32
18	191.80	1563.05		41	194.10	1544.53
19	191.90	1562.23		42	194.20	1543.73
20	192.00	1561.42		43	194.30	1542.94
21	192.10	1560.61		44	194.40	1542.14
22	192.20	1559.79		45	194.50	1541.35
23	192.30	1558.98		46	194.60	1540.56
24	192.40	1558.17		47	194.70	1539.77
25	192.50	1557.36		48	194.80	1538.98
26	192.60	1556.55		49	194.90	1538.19
27	192.70	1555.75		50	195.00	1537.40
28	192.80	1554.94		51	195.10	1536.61
29	192.90	1554.13		52	195.20	1535.82
30	193.00	1553.33		53	195.30	1535.04
31	193.10	1552.52		54	195.40	1534.25
32	193.20	1551.72		55	195.50	1533.47
33	193.30	1550.92		56	195.60	1532.68
34	193.40	1550.12		57	195.70	1531.90
35	193.50	1549.32		58	195.80	1531.12
36	193.60	1548.51		59	195.90	1530.33
37	193.70	1547.72		60	196.00	1529.55
38	193.80	1546.92		61	196.10	1528.77
