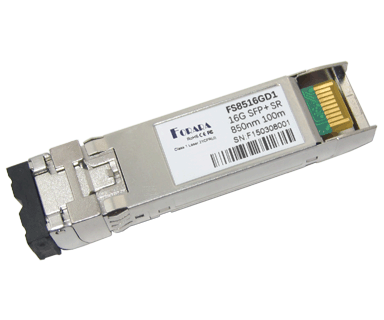

  • 16G SFP+ SR 100m MMF (FS8516GD1)

  • Features
    • Hot-pluggable SFP+ footprint
    • Uncooled 850nm VCSEL transmitter and PIN photo-detector
    • Data rate up to 14.025 Gbps
    • Transmission distance of 100m and 150m respectively on OM3 and OM4
    • Power consumption < 1.0W
    • Single 3.3V power supply
    • Metal enclosure for lower EMI
    • Duplex LC receptacle
    • Build-in Dual CDR at 14.025Gbps and bypass at 4.25Gbps and 8.5Gbps
    • Built-in Digital Diagnostic Monitoring functions
    • Compliant with SFP+ MSA specification SFF-8431 SFF-8432
    • Compliant with RoHS-6 (lead-free)
    • Operating Case Temperature:
      Commercial temperature range(COM): 0 to 70°C
      Industrial temperature range(IND): -40 to 85°C

    Applications
    • Tri Rate 4.25 / 8.5 / 14.025Gbps Fiber Channel
    • Other Optical Links

  • Product Details
    Part Number
    Download Datasheet
    Data Rate
    (Gbps)
    Reach
    (m)
    Wavelength
    (nm)
    Source Case Temp.
    (°C)
    DDM Others
    FS8516GD1 16 100 850 VSCEL + PIN 0 ~ 70 Yes MMF, RoHS-6
    FS8516GD1I 16 100 850 VSCEL + PIN -40 ~ 85 Yes MMF, RoHS-6
    Notes:
    For further information, please contact us by email via sales@forara.com.
