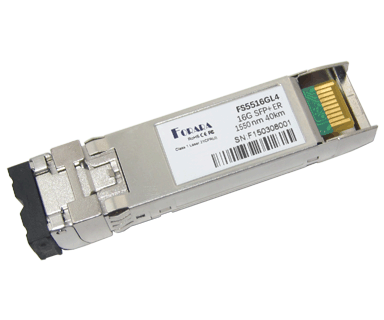

  • 16G SFP+ ER 40km SMF (FS5516GL4)

  • Features
    • Hot-pluggable SFP+ footprint
    • Cooled 1550nm EML transmitter and PIN photo-detector
    • Data rate up to 14.025 Gbps
    • Transmission distance of 40km on 9/125um SMF
    • Power consumption < 1.5W
    • Single 3.3V power supply
    • Metal enclosure for lower EMI
    • Build-in Dual CDR at 14.025Gbps and bypass at 4.25Gbps and 8.5Gbps
    • Duplex LC receptacle
    • Built-in Digital Diagnostic Monitoring functions
    • Compliant with SFP+ MSA specification SFF-8431 and SFF-8432
    • Compliant with RoHS-6 (lead-free)
    • Operating Case Temperature:
      Commercial temperature range(COM): 0 to 70°C
      Industrial temperature range(IND): -40 to 85°C

    Applications
    • Tri Rate 4.25 / 8.5 / 14.025Gbps Fiber Channel through Rate Select
    • 10GBASE-ER/EW 10G Ethernet
    • Other Optical Links

  • Product Details
    Part Number
    Download Datasheet
    Data Rate
    (Gbps)
    Reach
    (km)
    Wavelength
    (nm)
    Source Case Temp.
    (°C)
    DOM Others
    FS5516GL4 16 40 1550 EML + PIN 0 ~ 70 Yes SMF, RoHS-6
    FS5516GL4I 16 40 1550 EML + PIN -40 ~ 85 Yes SMF, RoHS-6
    Notes:
    For further information, please contact us by email via sales@forara.com.
