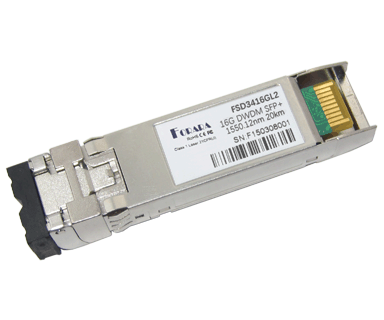

  • 16G DWDM SFP+ 20km SMF (FSDXX16GL2)

  • Features
    • Hot-pluggable SFP+ footprint
    • Temperature-stabilized DWDM EML transmitter and PIN photo-detector
    • 100GHz ITU Grid, C-Band
    • Data rate up to 14.025 Gbps
    • Transmission distance of 20km over 9/125um SMF
    • Power consumption < 1.5W
    • Build-in Dual CDR at 14.025Gbps and bypass at 4.25Gbps and 8.5Gbps
    • Single 3.3V power supply
    • Metal enclosure for lower EMI
    • Duplex LC receptacle
    • Built-in Digital Diagnostic Monitoring functions
    • Compliant with SFP+ MSA specification SFF-8431 and SFF-8472
    • Compliant with RoHS-6 (lead-free)
    • Operating Case Temperature:
      Commercial temperature range(COM): 0 to 70°C
      Industrial temperature range(IND): -40 to 85°C

    Applications
    • Tri Rate 4.25 / 8.5 / 14.025Gbps Fiber Channel through Rate Select
    • 10GBASE-LR/LW 10G Ethernet
    • Other Optical Links

  • Product Details
    Part Number
    Download Datasheet
    Data Rate
    (Gbps)
    Reach
    (km)
    Wavelength
    (nm)
    Source Case Temp.
    (°C)
    DDM Others
    FSDXX16GL2 16 20 C-Band EML + PIN 0 ~ 70 Yes SMF, RoHS-6
    Notes:
    1. XX is 100GHz ITU Channel ID, XX=17, 18, 19...61, which 17=1563.86nm, 18=1563.05nm, 19=1562.23nm ... 61=1528.77nm
    2. Please contact with Forara for specific wavelength availability.
