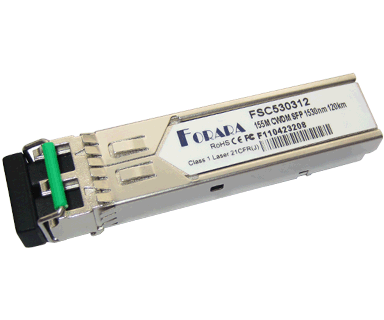

155M CWDM SFP 120km SMF (FSCXX0312)
- Features
• Hot-pluggable SFP footprint
• Uncooled CWDM DFB transmitter and PIN photo-detector
• 18 wavelengths from 1270nm to 1610nm with step 20nm
• Data rate up to 155Mbps
• Transmission distance of 120km over SMF
• Low power dissipation
• Single +3.3V power supply
• Metal enclosure for lower EMI
• Duplex LC receptacle
• Support digital diagnostic monitoring functions
• Compliant with MSA SFP Specification
• Compliant with SFF-8472
• Compliant with RoHS-6 (lead-free)
• Operating Case Temperature:
Commercial temperature range(COM): -5 to 70°C
Extended temperature range (EXT): -10 to 85°C
Industrial temperature range(IND): -40 to 85°C
Applications
• SONET OC-3 / SDH STM-1
• Fast Ethernet Links
• Other Optical Links
Product Details
Part Number
 |
Data Rate
(Mbps) |
Reach
(km) |
Wavelength
(nm) |
Source |
Case Temp.
(°C) |
DDM |
Others |
| FSCXX0312 |
155 |
120 |
1270 ~ 1610 |
DFB + PIN |
-5 ~ 70 |
Yes |
SMF, RoHS-6 |
| FSCXX0312E |
155 |
120 |
1270 ~ 1610 |
DFB + PIN |
-10 ~ 85 |
Yes |
SMF, RoHS-6 |
| FSCXX0312I |
155 |
120 |
1270 ~ 1610 |
DFB + PIN |
-40 ~ 85 |
Yes |
SMF, RoHS-6 |
Notes:
1. XX=27, 29, 31...61, which 27=1270nm, 29=1290nm, 31=1310nm...61=1610nm
2. Please contact with Forara for specific wavelength availability.
