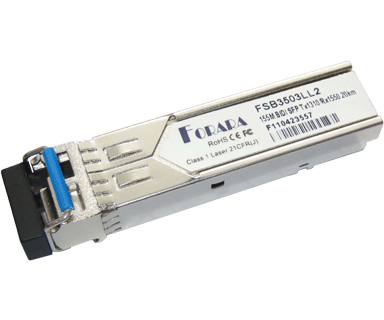

  • 155M BIDI SFP 20km SMF (FSBXX03XL2)

  • Features
    • Hot-pluggable SFP footprint
      A type: 1310nm FP TX / 1550nm PIN RX
      B type: 1550nm FP TX / 1310nm PIN RX
      C type: 1310nm FP TX / 1490nm PIN RX
      D type: 1490nm FP TX / 1310nm PIN RX
    • Data rate up to 155Mbps
    • Transmission distance of 20km over SMF
    • Simplex LC or SC optical receptacle
    • Low power dissipation
    • Single +3.3V power supply
    • Metal enclosure for lower EMI
    • Support digital diagnostic monitoring functions
    • Compliant with MSA SFP Specification
    • Compliant with SFF-8472
    • Compliant with RoHS-6 (lead-free)
    • Operating Case Temperature:
      Commercial temperature range(COM): -5 to 70°C
      Extended temperature range (EXT): -10 to 85°C
      Industrial temperature range(IND): -40 to 85°C

    Applications
    • SONET OC-3 / SDH STM-1
    • Fast Ethernet Links
    • Other Optical Links

  • Product Details
    Part Number
    Download Datasheet
    Data Rate
    (Mbps)
    Reach
    (km)
    Wavelength
    (nm)
    Source Case Temp.
    (°C)
    DDM Connector
    FSB3503LL2 155 20 Tx1310/Rx1550 FP + PIN -5 ~ 70 Yes LC
    FSB3503LL2I 155 20 Tx1310/Rx1550 FP + PIN -40 ~ 85 Yes LC
    FSB5303LL2 155 20 Tx1550/Rx1310 FP + PIN -5 ~ 70 Yes LC
    FSB5303LL2I 155 20 Tx1550/Rx1310 FP + PIN -40 ~ 85 Yes LC
    FSB3503SL2 155 20 Tx1310/Rx1550 FP + PIN -5 ~ 70 Yes SC
    FSB3503SL2I 155 20 Tx1310/Rx1550 FP + PIN -40 ~ 85 Yes SC
    FSB5303SL2 155 20 Tx1550/Rx1310 FP + PIN -5 ~ 70 Yes SC
    FSB5303SL2I 155 20 Tx1550/Rx1310 FP + PIN -40 ~ 85 Yes SC
    FSB3403LL2 155 20 Tx1310/Rx1490 FP + PIN -5 ~ 70 Yes LC
    FSB3403LL2I 155 20 Tx1310/Rx1490 FP + PIN -40 ~ 85 Yes LC
    FSB4303LL2 155 20 Tx1490/Rx1310 FP + PIN -5 ~ 70 Yes LC
    FSB4303LL2I 155 20 Tx1490/Rx1310 FP + PIN -40 ~ 85 Yes LC
    FSB3403SL2 155 20 Tx1310/Rx1490 FP + PIN -5 ~ 70 Yes SC
    FSB3403SL2I 155 20 Tx1310/Rx1490 FP + PIN -40 ~ 85 Yes SC
    FSB4303SL2 155 20 Tx1490/Rx1310 FP + PIN -5 ~ 70 Yes SC
    FSB4303SL2I 155 20 Tx1490/Rx1310 FP + PIN -40 ~ 85 Yes SC
    Notes:
    For further information, please contact us by email via sales@forara.com.
