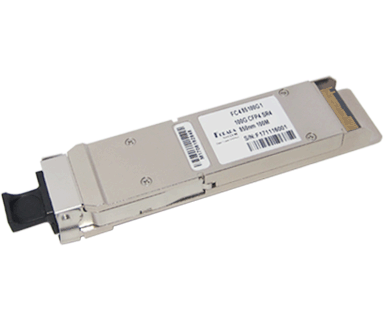

  • 100G/112G CFP4 SR4 100m MMF (FC485112GD1)

  • Features
    • Hot pluggable CFP4 form factor
    • Supports 103.1Gbps to 112.2Gbps aggregate bit rates (up to 28.05 Gbps per wavelength)
    • 4x28Gbps 850nm VCSEL transmitter and PIN photo-detector
    • 4x28Gbps electrical interface(CEI-28G-VSR)
    • Single 3.3V power supply
    • Power Consumption < 4.0W
    • Single MPO-12 receptacle
    • MDIO management interface
    • CAUI-4 high speed electrical interface
    • Built-in digital diagnostic functions
    • Compliant with 100G Ethernet IEEE802.3bm
    • Compliant with RoHS-6 (lead-free)
    • Operating Case Temperature:
      Commercial temperature range(COM): 0 to 70°C

    • 100GBASE-SR4 100G Ethernet
    • 128G Fibre Channel
    • 4x28Gbps Multimode OTN
    • Other Optical Links

  • Product Details
    Part Number
    Download Datasheet
    Data Rate
    Source Case Temp.
    DDM Others
    FC485112GD1 100/112 100 850 VCSEL + PIN 0 ~ 70 Yes MMF, RoHS-6
