10G XFP SR 300m Banner

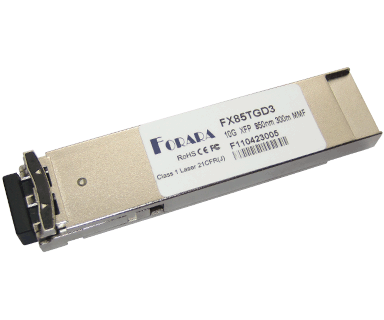

  • 10G XFP SR 850nm 300m MMF (FX85TGD3)

  • Features
    • Hot-pluggable XFP footprint
    • Uncooled 850nm VCSEL transmitter and PIN photo-detector
    • Supports 9.95Gbps to 11.3Gbps bit rates
    • Transmission distance up to 300m on 50/125um (OM3) MMF
    • Power consumption < 1.5W
    • Power supply: +1.8V,+3.3V
    • Supports XFI and Lineside loopback
    • No reference clock required
    • Duplex LC receptacle
    • Built-in digital diagnostic functions
    • Compliant with XFP MSA
    • Compliant with IEEE 802.3ae
    • Compliant with 1200-MX-SN-I
    • Compliant with RoHS-6 (lead-free)
    • Operating Case Temperature:
      Commercial temperature range(COM): 0 to 70°C
      Industrial temperature range(IND): -40 to 85°C

    Applications
    • 10GBASE-SR/SW 10G Ethernet
    • 1200-MX-SN-I 10G Fiber Channel
    • SONET OC-192 / SDH STM-64
    • Other Optical Links

  • Product Details
    Part Number
    Download Datasheet
    Data Rate
    (Gbps)
    Reach
    (m)
    Wavelength
    (nm)
    Source Case Temp.
    (°C)
    DDM Others
    FX85TGD3 10 300 850 VSCEL + PIN 0 ~ 70 Yes MMF, RoHS-6
    FX85TGD3E 10 300 850 VSCEL + PIN -10 ~ 85 Yes MMF, RoHS-6
    FX85TGD3I 10 300 850 VSCEL + PIN -40 ~ 85 Yes MMF, RoHS-6
    Notes:
    For further information, please contact us by email via sales@forara.com.
