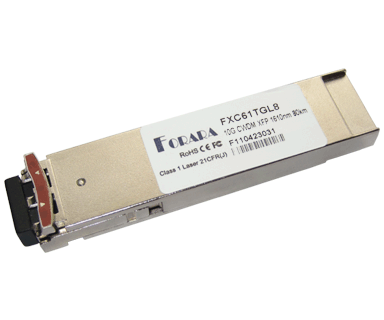

  • 10G CWDM XFP ZR 1470-1610nm 80km (FXCXXTGL8)

  • Features
    • Hot-pluggable XFP footprint
    • Temperature-stabilized CWDM EML transmitter and APD photo-detector
    • 8 wavelengths from 1470nm to 1610nm with step 20nm
    • Supports 9.95Gbps to 11.3Gbps bit rates
    • Transmission distance of 80km over 9/125um SMF
    • Power consumption < 2.0W
    • Power supply: +1.8V,+3.3V
    • Supports XFI and Lineside loopback
    • No reference clock required
    • Duplex LC receptacle
    • Built-in digital diagnostic functions
    • Compliant with XFP MSA
    • Compliant with IEEE 802.3ae
    • Compliant with 1200-SM-LL-L
    • Compliant with RoHS-6 (lead-free)
    • Operating Case Temperature:
      Commercial temperature range(COM): 0 to 70°C
      Industrial temperature range(IND): -40 to 85°C

    Applications
    • 10GBASE-ZR/ZW 10G Ethernet
    • 1200-SM-LL-L 10G Fiber Channel
    • SONET OC-192 / SDH STM-64
    • Other Optical Links

  • Product Details
    Part Number
    Download Datasheet
    Data Rate
    (Gbps)
    Reach
    (km)
    Wavelength
    (nm)
    Source Case Temp.
    (°C)
    DDM Others
    FXCXXTGL8 10 80 1470 ~ 1610 EML + APD 0 ~ 70 Yes SMF, RoHS-6
    FXCXXTGL8E 10 80 1470 ~ 1610 EML + APD -10 ~ 85 Yes SMF, RoHS-6
    FXCXXTGL8I 10 80 1470 ~ 1610 EML + APD -40 ~ 85 Yes SMF, RoHS-6
    Notes:
    1. XX=27, 29, 31...61, which 27=1270nm, 29=1290nm, 31=1310nm...61=1610nm
    2. Please contact with Forara for specific wavelength availability.
