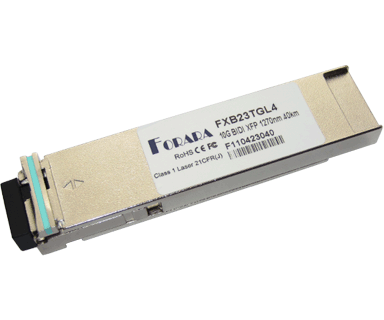

  • 10G BIDI XFP 40km Tx1270/Rx1330nm SMF (FXB23TGL4)

  • Features
    • Hot-pluggable XFP footprint
    • Uncooled 1270nm DFB Transmitter and 1330nm PIN Receiver
    • Supports 9.95Gbps to 11.3Gbps bit rates
    • Transmission distance of 40km over 9/125um SMF
    • Power consumption < 2.0W
    • Power supply: +1.8V,+3.3V
    • Supports XFI and Lineside loopback
    • No reference clock required
    • Metal enclosure for lower EMI
    • Simplex LC receptacle
    • Built-in digital diagnostic functions
    • Compliant with XFP MSA
    • Compliant with IEEE 802.3ae
    • Compliant with RoHS-6 (lead-free)
    • Operating Case Temperature:
      Commercial temperature range(COM): 0 to 70°C
      Industrial temperature range(IND): -40 to 85°C

    Applications
    • 10GBASE-ER at 10.3125Gbps
    • 10GBASE-EW at 9.953Gbps
    • 1200-SM-LL-L 10G Fiber Channel
    • SONET OC-192 / SDH STM-64
    • Other Optical Links

  • Product Details
    Part Number
    Download Datasheet
    Data Rate
    (Gbps)
    Reach
    (km)
    Wavelength
    (nm)
    Source Case Temp.
    (°C)
    DDM Others
    FXB23TGL4 10 40 Tx1270/Rx1330 DFB + PIN 0 ~ 70 Yes SMF, RoHS-6
    FXB23TGL4E 10 40 Tx1270/Rx1330 DFB + PIN -10 ~ 85 Yes SMF, RoHS-6
    FXB23TGL4I 10 40 Tx1270/Rx1330 DFB + PIN -40 ~ 85 Yes SMF, RoHS-6
    Notes:
    For further information, please contact us by email via sales@forara.com.
