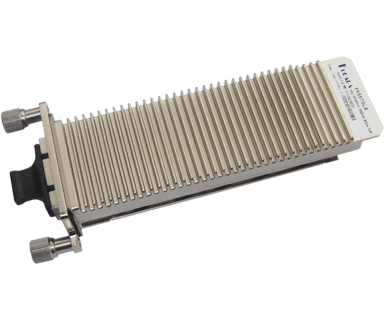

  • 10G XENPAK SR 300m SMF (FK85TGD3)

  • Features
    • Hot pluggable XENPAK MSA form factor
    • Uncooled 850nm VCSEL laser transmitter and PIN photo-detector
    • Transmission distance of 300m over 50/125um MMF
    • XAUI electrical interface 4x 3.125 Gbps Ethernet
    • Management and control via MDIO 2-wire bus
    • Power consumption < 2.2W
    • Power supply: +5.0 V, +3.3 V
    • Adaptable Power Supply (APS: +1.2 V)
    • 70-pin connector
    • SC connector and full duplex transmission mode
    • Built-in digital diagnostic functions
    • Compliant with IEEE 802.3ae
    • Compliant with RoHS-6 (lead-free)
    • Operating Case Temperature:
      Commercial temperature range(COM): 0 to 70°C
      Extended temperature range (EXT): -10 to 85°C
      Industrial temperature range(IND): -40 to 85°C

    Applications
    • 10GBASE-SR 10G Ethernet
    • Other Optical Links

  • Product Details
    Part Number
    Download Datasheet
    Data Rate
    (Gbps)
    Reach
    (m)
    Wavelength
    (nm)
    Source Case Temp.
    (°C)
    DDM Others
    FK85TGD3 10 300 850 VSCEL + PIN 0 ~ 70 Yes MMF, RoHS-6
    Notes:
    For further information, please contact us by email via sales@forara.com.
