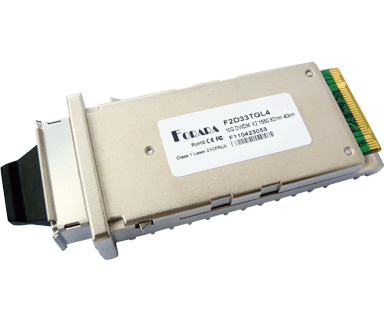

  • 10G DWDM X2 40km SMF (F2DXXTGL4)

  • Features
    • Hot pluggable X2 MSA form factor
    • Temperature-stabilized DWDM EML transmitter and PIN photo-detector
    • 100GHz ITU Grid, C Band, Channel 17 to 61
    • Transmission distance of 40km over SMF
    • XAUI electrical interface 4x 3.125 Gbps Ethernet
    • Management and control via MDIO 2-wire bus
    • Power consumption < 4.0W
    • Power supply: +5.0 V, +3.3 V
    • Adaptable Power Supply (APS: +1.2 V)
    • 70-pin connector
    • SC connector and full duplex transmission mode
    • Built-in digital diagnostic functions
    • Compliant with IEEE 802.3ae
    • Compliant with RoHS-6 (lead-free)
    • Operating Case Temperature:
      Commercial temperature range(COM): 0 to 70°C
      Extended temperature range (EXT): -10 to 85°C
      Industrial temperature range(IND): -40 to 85°C

    Applications
    • 10GBASE-ER 10G Ethernet
    • Other Optical Links

  • Product Details
    Part Number
    Download Datasheet
    Data Rate
    (Gbps)
    Reach
    (km)
    Wavelength
    (nm)
    Source Case Temp.
    (°C)
    DDM Others
    F2DXXTGL4 10 40 C-Band EML + PIN 0 ~ 70 Yes SMF, RoHS-6
    Notes:
    1. XX is 100GHz ITU Channel ID, detail as following table:
    2. Please contact with Forara for specific wavelength availability.
    Channel ID
    XX
    Frequency
    (THz)
    Wavelength
    (nm)
    Channel ID
    XX
    Frequency
    (THz)
    Wavelength
    (nm)
    16 191.60 1564.68 39 193.90 1546.12
    17 191.70 1563.86 40 194.00 1545.32
    18 191.80 1563.05 41 194.10 1544.53
    19 191.90 1562.23 42 194.20 1543.73
    20 192.00 1561.42 43 194.30 1542.94
    21 192.10 1560.61 44 194.40 1542.14
    22 192.20 1559.79 45 194.50 1541.35
    23 192.30 1558.98 46 194.60 1540.56
    24 192.40 1558.17 47 194.70 1539.77
    25 192.50 1557.36 48 194.80 1538.98
    26 192.60 1556.55 49 194.90 1538.19
    27 192.70 1555.75 50 195.00 1537.40
    28 192.80 1554.94 51 195.10 1536.61
    29 192.90 1554.13 52 195.20 1535.82
    30 193.00 1553.33 53 195.30 1535.04
    31 193.10 1552.52 54 195.40 1534.25
    32 193.20 1551.72 55 195.50 1533.47
    33 193.30 1550.92 56 195.60 1532.68
    34 193.40 1550.12 57 195.70 1531.90
    35 193.50 1549.32 58 195.80 1531.12
    36 193.60 1548.51 59 195.90 1530.33
    37 193.70 1547.72 60 196.00 1529.55
    38 193.80 1546.92 61 196.10 1528.77
