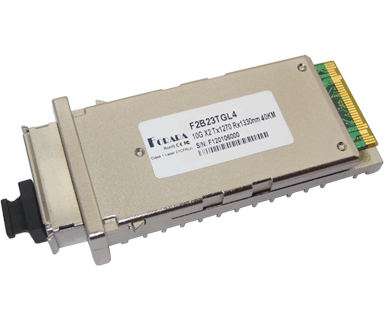

  • 10G BIDI X2 40km Tx1270/Rx1330nm SMF (F2B23TGL4)

  • Features
    • Hot pluggable X2 MSA form factor
    • Uncooled 1270nm DFB laser transmitter and 1330nm PIN Receiver
    • Transmission distance of 40km with SMF
    • Total power consumption: typical 2.0W, maximum 3.0W
    • XAUI electrical interface 4x 3.125 Gbps Ethernet
    • Management and control via MDIO 2-wire bus
    • Power supply: +5.0 V, +3.3 V
    • Adaptable Power Supply (APS: +1.2 V)
    • 70-pin connector
    • Simplex SC optical receptacle
    • Built-in digital diagnostic functions
    • Compliant with IEEE 802.3ae
    • Compliant with RoHS-6 (lead-free)
    • Operating Case Temperature:
      Commercial temperature range(COM): 0 to 70°C
      Extended temperature range (EXT): -10 to 85°C
      Industrial temperature range(IND): -40 to 85°C

    Applications
    • 10GBASE-ER 10G Ethernet
    • Other Optical Links

  • Product Details
    Part Number
    Download Datasheet
    Data Rate
    (Gbps)
    Reach
    (km)
    Wavelength
    (nm)
    Source Case Temp.
    (°C)
    DDM Others
    F2B23TGL4 10 40 Tx1270/Rx1330 DFB + PIN 0 ~ 70 Yes SMF, RoHS-6
    Notes:
