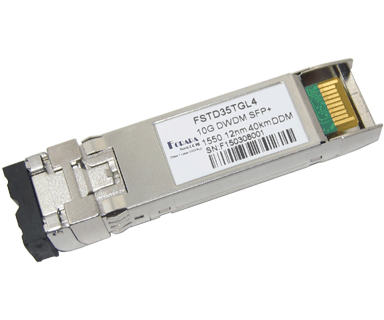

10G Tunable DWDM SFP+ ER 40km SMF (FSTDXXTGL4)

View enlarged image

SUBMIT PRODUCT INQUIRY

Features
• Hot-pluggable SFP+ footprint
• Monolithic MZM Tunable TOSA
• High performance PIN Receiver
• Supports 50GHz ITU Grid C-Band with a wavelength locker
• Supports 8.5Gbps and 9.95Gbps to 11.35Gbps
• Transmission distance of 40km over 9/125um SMF
• Power consumption < 1.5W
• Single +3.3 V power supply
• Duplex LC receptacle
• Built-in Digital Diagnostic Monitoring functions
• Compliant with SFP+ MSA
• Compliant with RoHS-6 (lead-free)
• Operating Case Temperature:
Commercial temperature range(COM): 0 to 70°C
Extended temperature range (EXT): -10 to 85°C

Applications
• 8.5G Fiber Channel
• 10G SONET/SDH
• 10G Ethernet
• 10G Fiber Channel
• ITU-T G.698.1 DS100SI-2Dz(C)
• ITU-T G.709
• Other Optical Links

Product Details

Part Number	Data Rate (Gbps)	Reach (m)	Wavelength (nm)	Source	Case Temp. (°C)	DDM	Others
FSTDXXTGL4	10	40	C-Band	MZM + PIN	0 ~ 70	Yes	SMF, RoHS-6
FSTDXXTGL4	10	40	C-Band	MZM + PIN	-10 ~ 85	Yes	SMF, RoHS-6

Notes:
1. XX refers to the default DWDM Wavelength Channel ID specified, listing in the following table
2. ITU 50GHz Center Wavelengths and Channel Numbering

Channel ID XX	Frequency (THz)	Wavelength (nm)	Channel ID XX	Frequency (THz)	Wavelength (nm)
01	191.70	1563.86	46	193.95	1545.72
02	191.75	1563.45	47	194.00	1545.32
03	191.80	1563.05	48	194.05	1544.92
04	191.85	1562.64	49	194.10	1544.53
05	191.90	1562.23	50	194.15	1544.13
06	191.95	1561.83	51	194.20	1543.73
07	192.00	1561.42	52	194.25	1543.33
08	192.05	1561.01	53	194.30	1542.94
09	192.10	1560.61	54	194.35	1542.54
10	192.15	1560.20	55	194.40	1542.14
11	192.20	1559.79	56	194.45	1541.75
12	192.25	1559.39	57	194.50	1541.35
13	192.30	1558.98	58	194.55	1540.95
14	192.35	1558.58	59	194.60	1540.56
15	192.40	1558.17	60	194.65	1540.16
16	192.45	1557.77	61	194.70	1539.77
17	192.50	1557.36	62	194.75	1539.37
18	192.55	1556.96	63	194.80	1538.98
19	192.60	1556.55	64	194.85	1538.58
20	192.65	1556.15	65	194.90	1538.19
21	192.70	1555.75	66	194.95	1537.79
22	192.75	1555.34	67	195.00	1537.40
23	192.80	1554.94	68	195.05	1537.00
24	192.85	1554.54	69	195.10	1536.61
25	192.90	1554.13	70	195.15	1536.22
26	192.95	1553.73	71	195.20	1535.82
27	193.00	1553.33	72	195.25	1535.43
28	193.05	1552.93	73	195.30	1535.04
29	193.10	1552.52	74	195.35	1534.64
30	193.15	1552.12	75	195.40	1534.25
31	193.20	1551.72	76	195.45	1533.86
32	193.25	1551.32	77	195.50	1533.47
33	193.30	1550.92	78	195.55	1533.07
34	193.35	1550.52	79	195.60	1532.68
35	193.40	1550.12	80	195.65	1532.29
36	193.45	1549.72	81	195.70	1531.90
37	193.50	1549.32	82	195.75	1531.51
38	193.55	1548.91	83	195.80	1531.12
39	193.60	1548.51	84	195.85	1530.72
40	193.65	1548.11	85	195.90	1530.33
41	193.70	1547.72	86	195.95	1529.94
42	193.75	1547.32	87	196.00	1529.55
43	193.80	1546.92	88	196.05	1529.16
44	193.85	1546.52	89	196.10	1528.77
45	193.90	1546.12	90	196.15	1528.38
