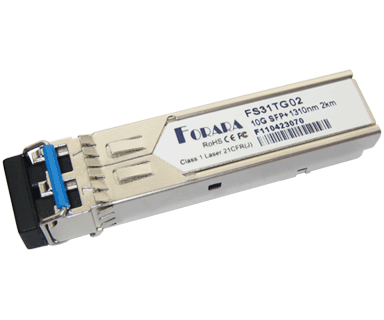

  • 10G SFP+ IR 1310nm 2km SMF (FS31TG02)

  • Features
    • Hot-pluggable SFP+ footprint
    • Uncooled 1310nm FP transmitter and PIN photo-detector
    • Supports 9.95 to 10.5 Gbps bit rates
    • Transmission distance of 2km over SMF
    • Power consumption < 1.0W
    • Single 3.3V power supply
    • Metal enclosure for lower EMI
    • Duplex LC receptacle
    • Built-in Digital Diagnostic Monitoring functions
    • Compliant with SFP+ MSA specification SFF-8431
    • Compliant with RoHS-6 (lead-free)
    • Operating Case Temperature:
      Commercial temperature range(COM): 0 to 70°C
      Industrial temperature range(IND): -40 to 85°C

    Applications
    • 10GBASE-LR at 10.3125Gbps
    • 10GBASE-LW at 9.953Gbps
    • Other Optical Links

  • Product Details
    Part Number
    Download Datasheet
    Data Rate
    (Gbps)
    Reach
    (km)
    Wavelength
    (nm)
    Source Case Temp.
    (°C)
    DDM Others
    FS31TG02 10 2 1310 FP + PIN 0 ~ 70 Yes SMF, RoHS-6
    FS31TG02E 10 2 1310 FP + PIN -10 ~ 85 Yes SMF, RoHS-6
    FS31TG02I 10 2 1310 FP + PIN -40 ~ 85 Yes SMF, RoHS-6
    Notes:
    For further information, please contact us by email via sales@forara.com.
