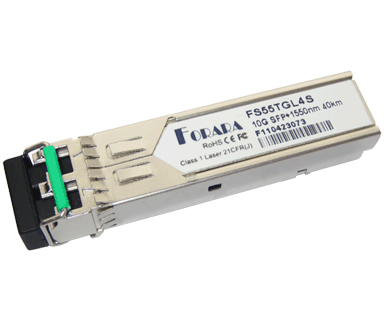

  • 10G SFP+ ER SONET with CDR (FS55TGL4S)

  • Features
    • Hot-pluggable SFP+ footprint
    • Temperature-stabilized 1550nm EML transmitter and PIN photo-detector
    • Built in dual CDR on both TX and RX
    • Supports 9.95 to 11.3 Gbps bit rates
    • Transmission distance of 40km over 9/125um SMF
    • Power consumption < 1.5W, (< 1.0W with CDR's OFF)
    • Single 3.3V power supply
    • Metal enclosure for lower EMI
    • Duplex LC receptacle
    • Built-in Digital Diagnostic Monitoring functions
    • Compliant with SFP+ MSA specification SFF-8431
    • Compliant with IEEE 802.3ae
    • Compliant with RoHS-6 (lead-free)
    • Operating Case Temperature:
      Commercial temperature range(COM): 0 to 70°C
      Industrial temperature range(IND): -40 to 85°C

    Applications
    • SONET OC-192 / SDH STM-64 line card
    • 10GBASE-ER at 10.3125Gbps
    • 10GBASE-EW at 9.953Gbps
    • 10G Fibre Channel with/without FEC
    • Other Optical Links

  • Product Details
    Part Number
    Download Datasheet
    Data Rate
    (Gbps)
    Reach
    (km)
    Wavelength
    (nm)
    Source Case Temp.
    (°C)
    DDM Others
    FS55TGL4S 10 40 1550 EML + PIN 0 ~ 70 Yes SMF, RoHS-6
    FS55TGL4SE 10 40 1550 EML + PIN -10 ~ 85 Yes SMF, RoHS-6
    FS55TGL4SI 10 40 1550 EML + PIN -40 ~ 85 Yes SMF, RoHS-6
    Notes:
    For further information, please contact us by email via sales@forara.com.
