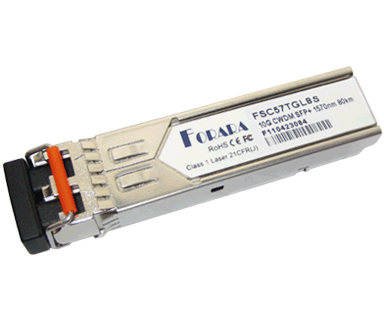

  • 10G CWDM SFP+ ZR 80km SONET with CDR (FSCXXTGL8S)

  • Features
    • Hot-pluggable SFP+ footprint
    • Temperature-stabilized CWDM EML transmitter and APD receiver
    • 8 wavelengths from 1470nm to 1610nm with step 20nm
    • Built in dual CDR on both TX and RX
    • Supports 9.95 to 11.3 Gbps bit rates
    • Transmission distance of 80km over 9/125um SMF
    • Power consumption < 1.5W, (< 1.0W with CDR's OFF)
    • Single 3.3V power supply
    • Metal enclosure for lower EMI
    • Duplex LC receptacle
    • Built-in Digital Diagnostic Monitoring functions
    • Compliant with SFF-8431, SFF-8432, SFF-8472
    • Compliant with IEEE 802.3ae, SONET OC192 / SDH STM64
    • Compliant with RoHS-6 (lead-free)
    • Operating Case Temperature:
      Commercial temperature range(COM): 0 to 70°C

    Applications
    • SONET OC-192 / SDH STM-64 line card
    • 10GBASE-ZR at 10.3125Gbps
    • 10GBASE-ZW at 9.953Gbps
    • 10G Fibre Channel with/without FEC
    • Other Optical Links

  • Product Details
    Part Number
    Download Datasheet
    Data Rate
    (Gbps)
    Reach
    (km)
    Wavelength
    (nm)
    Source Case Temp.
    (°C)
    DDM Others
    FSCXXTGL8S 10 80 1470 ~ 1610 EML + APD 0 ~ 70 Yes SMF, RoHS-6
    FSCXXTGL8SE 10 80 1470 ~ 1610 EML + APD -10 ~ 85 Yes SMF, RoHS-6
    FSCXXTGL8SI 10 80 1470 ~ 1610 EML + APD -40 ~ 85 Yes SMF, RoHS-6
    Notes:
    1. XX=27, 29, 31...61, which 27=1270nm, 29=1290nm, 31=1310nm...61=1610nm
    2. Please contact with Forara for specific wavelength availability.
