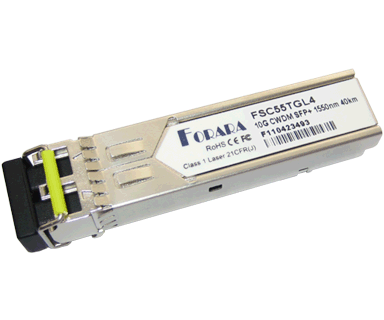

  • 10G CWDM SFP+ 1470-1610nm 40km SMF (FSCXXTGL4)

  • Features
    • Hot-pluggable SFP+ footprint
    • Temperature-stabilized CWDM EML transmitter and PIN photo-detector
    • 8 wavelengths from 1470nm to 1610nm with step 20nm
    • Data rate up to 11.1Gbps
    • Transmission distance of 40km over 9/125um SMF
    • Power consumption < 1.5W
    • Single 3.3V power supply
    • Metal enclosure for lower EMI
    • Duplex LC receptacle
    • Built-in Digital Diagnostic Monitoring functions
    • Compliant with SFP+ MSA specification SFF-8431
    • Compliant with IEEE 802.3ae
    • Compliant with RoHS-6 (lead-free)
    • Operating Case Temperature:
      Commercial temperature range(COM): 0 to 70°C
      Industrial temperature range(IND): -40 to 85°C

    Applications
    • 10GBASE-ER at 10.3125Gbps
    • 10GBASE-EW at 9.953Gbps
    • Other Optical Links
  • Product Details
    Part Number
    Download Datasheet
    Data Rate
    (Gbps)
    Reach
    (km)
    Wavelength
    (nm)
    Source Case Temp.
    (°C)
    DDM Others
    FSCXXTGL4 10 40 1470 ~ 1610 EML + PIN 0 ~ 70 Yes SMF, RoHS-6
    FSCXXTGL4E 10 40 1470 ~ 1610 EML + PIN -10 ~ 85 Yes SMF, RoHS-6
    FSCXXTGL4I 10 40 1470 ~ 1610 EML + PIN -40 ~ 85 Yes SMF, RoHS-6
    Notes:
    1. XX=27, 29, 31...61, which 27=1270nm, 29=1290nm, 31=1310nm...61=1610nm
    2. Please contact with Forara for specific wavelength availability.
