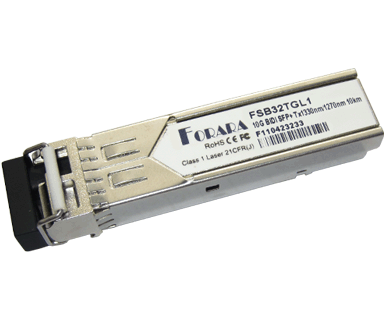

  • 10G BIDI SFP+ 10km Tx1330/Rx1270nm SMF (FSB32TGL1)

  • Features
    • Hot-pluggable SFP+ footprint
    • Uncooled 1330nm DFB Transmitter and 1270nm PIN Receiver
    • Supports 9.95 to 10.5 Gbps bit rates
    • Transmission distance of 10km over 9/125um SMF
    • Power consumption < 1.0W
    • Single 3.3V power supply
    • Metal enclosure for lower EMI
    • Simplex LC receptacle
    • Built-in Digital Diagnostic Monitoring functions
    • Compliant with SFP+ MSA specification SFF-8431
    • Compliant with IEEE 802.3ae
    • Compliant with RoHS-6 (lead-free)
    • Operating Case Temperature:
      Commercial temperature range(COM): 0 to 70°C
      Industrial temperature range(IND): -40 to 85°C

    Applications
    • 10GBASE-LR at 10.3125Gbps
    • 10GBASE-LW at 9.953Gbps
    • 1000BASE-LX Ethernet
    • Other Optical Links

  • Product Details
    Part Number
    Download Datasheet
    Data Rate
    (Gbps)
    Reach
    (km)
    Wavelength
    (nm)
    Source Case Temp.
    (°C)
    DDM Others
    FSB32TGL1 10 10 Tx1330/Rx1270 DFB + PIN 0 ~ 70 Yes SMF, RoHS-6
    FSB32TGL1E 10 10 Tx1330/Rx1270 DFB + PIN -10 ~ 85 Yes SMF, RoHS-6
    FSB32TGL1I 10 10 Tx1330/Rx1270 DFB + PIN -40 ~ 85 Yes SMF, RoHS-6
    Notes:
    For further information, please contact us by email via sales@forara.com.
