100G QSFP28 to 4x25G SFP28 Copper Breakout Cable 2m Banner

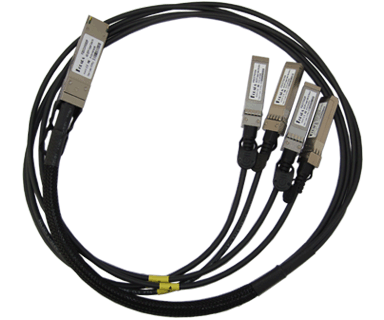

  • 100G QSFP28 to 4x25G SFP28 Copper Breakout Cable 2m (FQ4CC100G02P)

  • Features
    • Hot pluggable
    • QSFP28 End: Compliant with QSFP28 MSA specifications • SFP28 End: Compliant with SFP28 MSA specifications • Supports 100Gbps to 4x25Gbps data rate (up to 25.78125 Gbps per channel)
    • Compliant with IEEE 802.3bj and and P802.3by
    • Full-duplex4 channels copper cable
    • Copper link length up to 5m
    • 30 AWG to 26 AWG cable sizes available
    • Ultra-low crosstalk for improved performance
    • Low insertion loss
    • BER better than 10-15
    • Single 3.3V power supply
    • Metal enclosure for lower EMI
    • RoHS compliant
    • Operating Case Temperature:
      Standard: -5°C to 70°C

    • 100/25 Gigabit Ethernet
    • Data Center Networks
    • Storage Area Networks
    • High performance computing
    • Other Links

  • Product Details
    Part Number
    Download Datasheet
    Data Rate
    Source Type Case Temp.
    AWG Others
    FQ4CC100G02P 100 to 4x25 2 Copper Passive 0 ~ 70 30 RoHS-6
    1. 30 AWG to 24 AWG cable sizes maybe available upon request.
    2. Other customized lengths maybe available upon request.
    3. Other customized cable color maybe available upon request.
    4. For further information, please contact us by email via
