100G QSFP28 to 25G SFP28 Adapter 2018/01/09
The Forara 100G QSFP28 to 25G SFP28 adapter (QSA28) provides the solution to connect a SFP28 transceiver or cable to a QSFP28 port of a Nx100 Gbps switch or network card. It enables smooth, cost effective connections between a single lane transceiver / cable and a quad-lane port.

Features
• Hot pluggable electrical interface
• Connector on First End: QSFP28
• Connector on Second End: SFP28
• One independent duplex channels operating at 25Gbps, 10Gbps and 5Gbps
• Precision process control for minimization of pair-to-pair skew
• Trouble-free installation and network bring-up
• All-metal housing for superior EMI performance
• 100 ohm differential impedance system
• Low insertion loss
• Low crosstalk
• Secure latching mechanism
• Compliant with SFF-8665 IEEE802.3bj
• Compliant with SFF-8432 IEEE-802.3by
• Compliant with RoHS-6 (lead-free)
• Operating Case Temperature:
  Commercial temperature range(COM): -20 to 85°C

Applications
• Data Center Networks
• Storage Area Networks
• 25G Ethernet / 10G Ethernet
• Telecommunication and Wireless Infrastructure
• Other Optical Links

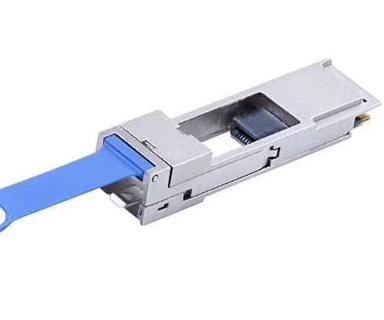

QSFP28 to SFP28 adapter (QSA28)
